API Gateway Patterns: Design Options and Use Cases

Why Do API Gateway Patterns Matter in Microservices?

Microservices break applications into smaller, independent services, but this also increases client complexity. A single user action can trigger multiple API calls across services, increasing latency and coupling the client tightly to the backend.

Direct client-to-service communication does not scale well. Clients end up handling routing, authentication, and service changes, which makes systems harder to maintain as they grow.

An API gateway addresses this by acting as a single entry point that manages routing, security, and request coordination. However, a single gateway design does not fit every system.

API gateway patterns provide different ways to structure this layer based on system requirements, helping you design more scalable and maintainable architectures.

What is an API Gateway in Microservices Architecture?

An API gateway is a layer that sits between clients and backend services, acting as the single entry point for all incoming requests.

API Gateway as a Single Entry Point

The gateway operates at the edge of the system, meaning it is the first component that receives client requests. It provides a unified interface, so clients don’t need to know how many services exist or how they are structured internally.

This abstraction reduces complexity on the client side and allows backend services to evolve without breaking client integrations.

Role of API Gateway in Microservices

In a microservices architecture, services are distributed, independently deployed, and communicate over multiple network boundaries. Managing this complexity requires a structured approach to request routing and service orchestration.

An API Gateway serves as a centralized entry point for all client interactions, routing requests to the appropriate services while abstracting the underlying system architecture. This simplifies client-side logic and reduces direct dependencies on individual services.

It also enables the implementation of cross-cutting concerns such as authentication, rate limiting, traffic control, logging, and request transformation in a single layer eliminating the need to duplicate these mechanisms across multiple services.

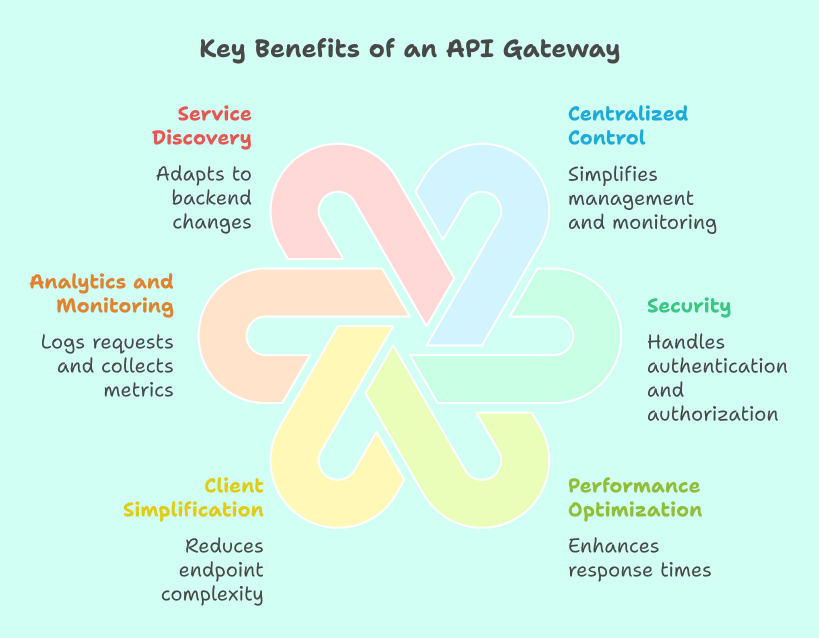

Why Use an API Gateway in Microservices?

An API gateway simplifies how clients interact with a microservices-based system by acting as a unified entry point. Instead of handling multiple service calls and managing backend complexity, clients rely on the gateway to process and route requests efficiently.

As systems grow, this layer becomes essential for managing communication, enforcing consistency, and improving how services are exposed to external clients.

How API Gateways Reduce Client Complexity

In a microservices architecture, a single frontend action may require multiple API calls to different services. Without a gateway, the client must manage these interactions, including request sequencing, error handling, and service discovery.

An API gateway removes this burden by consolidating all interactions into a single endpoint. The gateway handles orchestration internally, allowing clients to remain simple and focused only on user experience.

How API Gateways Centralize Security Enforcement

Security is a cross-cutting concern that becomes difficult to manage when implemented separately in each service. Each service handling its own authentication and authorization can lead to inconsistencies and duplicated logic.

With an API gateway, all incoming requests pass through a central layer where security policies are enforced. This ensures consistent authentication, authorization, and request validation across the entire system.

How API Gateways Improve Performance and Reduce Latency

Microservices require multiple service calls to fulfill a single request, which makes handling request flows across services more complex and can increase latency. Without optimization, this results in slower response times and inefficient network usage.

The API gateway improves performance by caching frequently requested data and aggregating responses from multiple services. By executing service calls in parallel and returning a single response, it reduces network overhead and improves overall responsiveness.

Observability and Monitoring with API Gateways

Tracking requests across multiple services can be challenging without a centralized layer. Each service generating its own logs makes it harder to trace issues or understand system behavior.

The API gateway provides a unified point for logging, tracing, and monitoring. This makes it easier to follow request flows, detect bottlenecks, and maintain visibility across the entire system.

How API Gateways Decouple Clients from Backend Services

In a distributed system, backend services evolve over time with new endpoints, scaling strategies, or architectural changes. Direct client integration with these services can lead to frequent breaking changes.

The API gateway acts as a buffer between clients and services, abstracting internal changes. This allows backend teams to modify or scale services without impacting client applications.

Latency Considerations When Using an API Gateway

Introducing an API gateway adds an extra step in the request flow, as all requests must pass through this layer before reaching backend services. This can introduce a small amount of latency.

However, with proper optimization such as caching, efficient routing, and connection management, this overhead is typically minimal and outweighed by the benefits it provides.

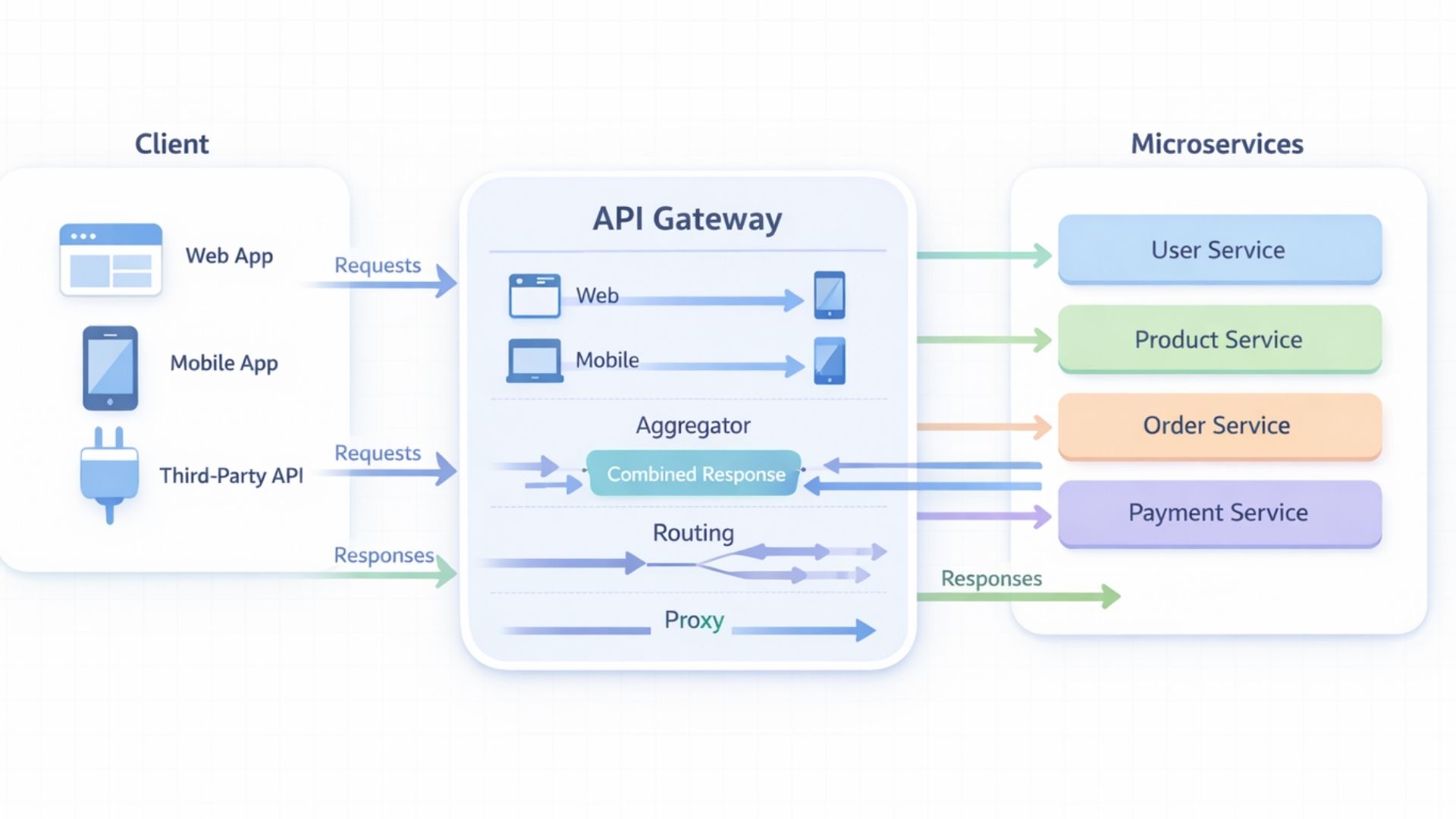

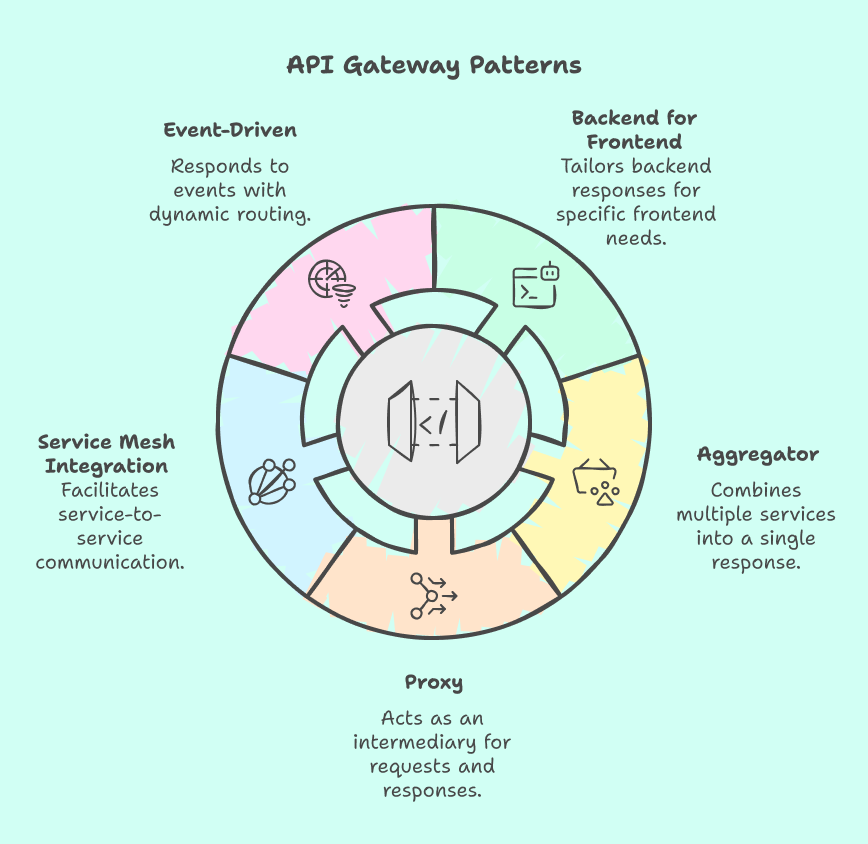

API Gateway Patterns in Microservices Architecture

API gateway patterns define how a gateway is structured to handle communication between clients and microservices. Each pattern solves a specific problem, such as optimizing client responses, managing traffic, or handling shared concerns across services.

In real-world systems, these patterns are often combined rather than used in isolation. The choice depends on system complexity, client requirements, and performance constraints.

Understanding these patterns helps in designing a gateway that aligns with architectural goals instead of treating it as a generic routing layer.

Backend for Frontend (BFF) Pattern

The Backend for Frontend (BFF) pattern creates a separate API gateway for each client type, such as web, mobile, or third-party applications. Each gateway is tailored to the specific needs of that client, ensuring that responses are optimized for its interface and usage patterns.

This approach solves over-fetching and under-fetching by returning only the required data for each client. It improves performance and flexibility, especially when different clients require different response formats or interaction flows.

However, it introduces duplication and increases maintenance, as multiple gateways must be managed and updated. It is not ideal for systems with a single frontend or low complexity, where a unified gateway is easier to maintain.

Aggregator Pattern

The Aggregator pattern allows the API gateway to combine responses from multiple microservices into a single response. Instead of the client making several API calls, the gateway orchestrates those calls and returns a unified payload.

This reduces the number of client requests and simplifies frontend logic. Aggregation can run in parallel for better performance or sequentially when dependencies exist between services.

The trade-off is increased latency and complexity at the gateway, especially when handling failures across multiple services. For example, a product page combining details, reviews, and pricing depends on multiple services, and delays in one can affect the entire response. This pattern is not suitable for real-time or latency-sensitive systems.

Routing Pattern

The routing pattern focuses on directing incoming requests to the correct backend service using rules such as URL paths (/users, /orders), headers, or query parameters. This allows the gateway to act as a traffic controller without exposing the internal service structure.

It supports advanced routing strategies, enabling traffic distribution in cloud systems such as version-based routing, canary deployments, and A/B testing. Integration with service discovery ensures that requests are dynamically routed to available service instances, enabling scalability and resilience.

Routing also enables traffic shaping, allowing systems to control how requests are distributed across services. However, as routing rules grow more complex, managing and maintaining them requires careful configuration and monitoring.

Transformation Pattern

The Transformation pattern allows the gateway to modify requests and responses as they pass through it. This includes adapting client requests to backend service expectations and formatting responses for different clients.

It supports protocol conversion (e.g., REST to gRPC), data format transformation (JSON to XML), and schema evolution for backward compatibility. This is especially useful when integrating legacy systems or supporting multiple API versions.

While powerful, excessive transformation logic can increase processing overhead and complexity. It should be used carefully to avoid turning the gateway into a heavy processing layer.

Gateway Offloading Pattern

The Gateway Offloading pattern moves shared concerns such as authentication, rate limiting, and request validation from individual services to the API gateway. This centralizes these responsibilities and reduces duplication across microservices.

By handling these concerns at the gateway, services can remain focused on business logic, improving maintainability and consistency across the system. It also ensures uniform enforcement of policies like security and traffic control.

However, this makes the gateway heavier and can turn it into a bottleneck if not designed properly. It may not be suitable for highly decentralized teams where each service requires full ownership of its logic.

Proxy Pattern

The Proxy pattern uses the API gateway as a simple pass-through layer that forwards requests to backend services with minimal processing. It behaves like a reverse proxy, handling routing and basic traffic management.

This approach is useful in early-stage systems or simple architectures where advanced gateway features are not required. It keeps the gateway lightweight and easy to maintain.

However, it does not support capabilities like aggregation or transformation, making it insufficient for complex microservices systems as they scale.

Service Mesh Integration Pattern

This pattern combines an API gateway with a service mesh to manage different types of traffic. The gateway handles north-south traffic (client to service), while the service mesh manages east-west traffic (service to service communication).

Service meshes use sidecar proxies, such as Envoy, to control communication between services. This enables features like load balancing, retries, and fine-grained observability at the network level.

While this provides strong control and scalability, it introduces significant operational complexity. It is best suited for large-scale systems with advanced networking requirements.

Event-Driven API Gateway Pattern

The Event-Driven pattern integrates the API gateway with asynchronous communication systems such as message queues or event streams. Instead of waiting for a direct response, client requests trigger events that are processed by backend services.

This approach is useful for scenarios like notifications, background processing, and real-time updates where immediate responses are not required. It improves scalability by decoupling request handling from processing.

However, it increases system complexity and makes debugging more difficult due to non-linear workflows. Tracking events across multiple systems requires additional observability and tooling.

Two-Tier API Gateway Pattern

The two-tier pattern introduces two layers of gateways: an edge gateway for handling external client requests and an internal gateway for managing service-to-service routing.

This separation allows better control over responsibilities, with the edge gateway focusing on security and exposure, while the internal gateway handles routing and orchestration within the system.

It improves scalability and security isolation but adds architectural complexity. This pattern is typically used in large systems where separation of concerns is critical.

Microgateway Pattern

The Microgateway pattern assigns a dedicated gateway to each microservice, allowing teams to manage their own gateway configurations independently.

This provides autonomy and fine-grained control over routing, security, and traffic policies at the service level. It is particularly useful in organizations with multiple teams working on independent services.

However, it introduces operational overhead and can lead to duplication across services. Managing multiple gateways at scale requires strong governance and tooling.

API Gateway Patterns Comparison

Core Responsibilities of an API Gateway in Microservices

An API gateway is not just a routing layer it acts as a central control point for how requests are processed, secured, and delivered across microservices. It handles several core responsibilities that simplify communication and ensure consistency across the system.

These responsibilities are typically shared across all incoming requests, allowing services to focus on business logic while the gateway manages cross-cutting concerns.

Request Routing

Request routing is the primary responsibility of an API gateway, where incoming requests are directed to the appropriate microservice. This is commonly done using path-based routing (e.g., /users, /orders) or header-based routing for versioning and feature control.

The gateway can also integrate with service discovery mechanisms in distributed systems to dynamically route requests to available service instances. Combined with basic load balancing, this ensures traffic is distributed efficiently across services.

For example, a request to /orders may be routed to different service instances based on availability, while header-based rules can direct traffic to specific versions during deployments.

Request and Response Transformation

An API gateway can modify both incoming requests and outgoing responses to ensure compatibility between clients and services. This includes protocol conversion, such as translating HTTP requests to gRPC for backend services.

It also handles data format conversion (e.g., JSON to XML), header manipulation, and payload shaping to match client or service expectations. This is especially useful when supporting multiple client types or integrating with legacy systems.

Additionally, transformation supports API versioning by adapting requests and responses across different versions, allowing systems to evolve without breaking existing clients.

Response Aggregation

Response aggregation allows the gateway to combine data from multiple services into a single response. Instead of the client making multiple calls, the gateway orchestrates these requests and returns a unified payload.

Aggregation can be executed in parallel or sequentially depending on service dependencies.

For example, a dashboard request may require data from user, analytics, and notification services, all combined into a single response for faster and simpler client consumption.

Security and Access Control

The API gateway enforces security by handling authentication, authorization, and traffic control at a central layer. It validates user identity using mechanisms like JWT or OAuth and ensures access is granted based on roles or scopes.

It also applies rate limiting and throttling to control incoming traffic. Input validation helps block malformed or malicious requests before they reach services.

In addition, the gateway can handle TLS termination, ensuring secure communication while offloading encryption responsibilities from backend services.

Offloading Cross-Cutting Concerns

An API gateway can handle shared concerns such as logging, monitoring, caching, retries, and fault handling, reducing the need to implement these repeatedly across services. This centralization ensures consistent behavior and simplifies overall system design.

For example, the gateway can cache frequently requested responses to reduce backend load, log all incoming requests for observability, and implement retry mechanisms to handle transient failures. Circuit breakers can also be applied to prevent cascading failures when a service becomes unavailable.

By offloading these responsibilities, microservices can remain focused on business logic rather than infrastructure concerns. This leads to cleaner service design, easier maintenance, and more consistent handling of cross-cutting functionality across the system.

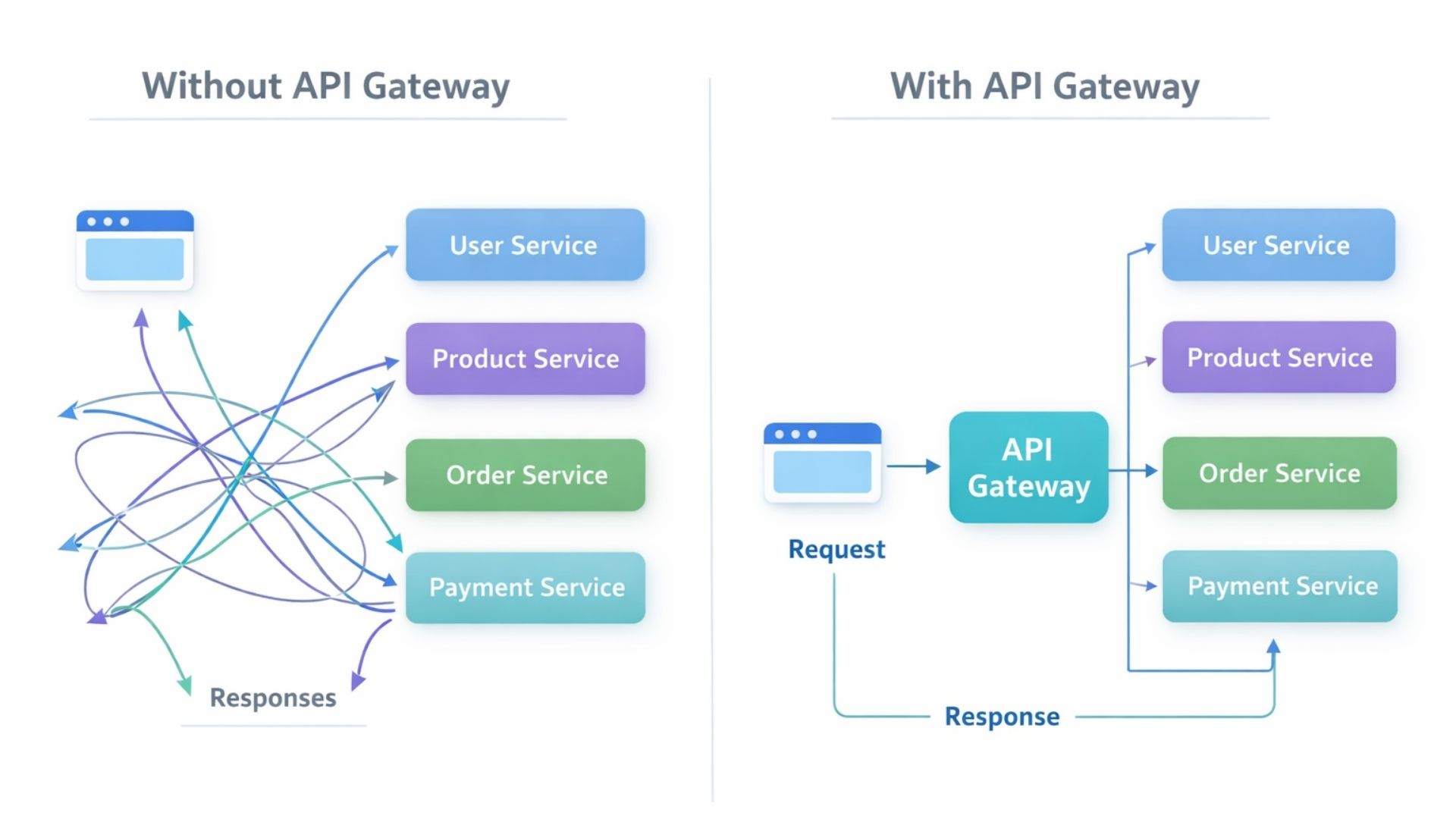

How do API Gateways Handle Requests in Microservices?

In a microservices architecture, a single user action often requires data from multiple services. An API gateway simplifies this interaction by acting as a single entry point and coordinating requests across services.

Request Flow Without an API Gateway

Consider an e-commerce application with services like user, product, order, and payment. To render a product page, the client must call multiple services separately for details, reviews, pricing, and availability.

This increases the number of network requests and tightly couples the client with backend services, making the system harder to scale and maintain.

Request Flow With an API Gateway

With an API gateway, the client sends a single request. The gateway routes it to the required services, fetches data (often in parallel), and returns a unified response.

This setup typically combines multiple patterns. Aggregation is used to combine responses, routing directs requests to the correct services, and BFF can tailor responses for different client types such as web and mobile.

Typical API Gateway Request Flow Explained

A typical request starts when the client sends a request to the gateway. The gateway authenticates the request, routes it to the relevant services, collects the responses, applies any required transformations, and returns a single response back to the client.

How to Choose the Right API Gateway Pattern

Choosing the right API gateway pattern depends on how your system is structured and how clients interact with it. Different patterns solve different problems, so the decision should be based on actual system needs rather than following a fixed approach.

In most systems, multiple patterns are combined. The goal is to select the ones that fit your request flow, client requirements, and system constraints without introducing unnecessary complexity.

Factors That Influence Pattern Selection

Choosing a pattern is not about following a fixed approach. It depends on how requests are handled, how clients interact with services, and how the system is expected to evolve over time. These factors help narrow down which patterns are actually relevant instead of adding unnecessary layers.

Number of Clients

When multiple client types are involved, such as web, mobile, or third-party integrations, a single API response structure often becomes inefficient. Different clients require different data shapes, response sizes, and request flows.

In such cases, patterns like Backend for Frontend (BFF) help tailor responses for each client. This reduces unnecessary data transfer and avoids pushing transformation logic to the frontend.

System Complexity

In simpler systems with a limited number of services, basic routing is usually enough to handle requests. Introducing aggregation or transformation too early can add unnecessary layers and make the system harder to manage.

As the number of services grows, requests often depend on multiple services. This is where patterns like aggregation or transformation become necessary to coordinate responses and simplify client interactions.

Performance Requirements

When response time is critical, reducing the number of network calls becomes important. Aggregation can help by combining multiple service calls into a single response, but it also introduces processing at the gateway layer.

The decision depends on where the overhead should exist. In some cases, reducing client calls improves performance, while in others, additional processing at the gateway may not be justified.

Team Expertise

Some patterns require deeper understanding of distributed systems and infrastructure. Patterns like service mesh integration or microgateway setups introduce additional operational complexity.

If the team is not equipped to manage this complexity, simpler patterns are often more practical. Choosing a pattern that the team can maintain consistently is more important than adopting a more advanced approach.

Handling Growth in Traffic and Services

As systems grow, both the number of services and incoming requests tend to increase. Patterns that work well in early stages may become limiting when more services are added or when traffic patterns change.

Gateway designs should avoid concentrating too much logic in a single layer. Patterns that support flexible routing and independent service handling help maintain performance as the system evolves.

Pattern Selection Guide

A practical way to choose patterns is to map common system needs to the patterns that address them. This helps quickly narrow down the right approach without overthinking the architecture.

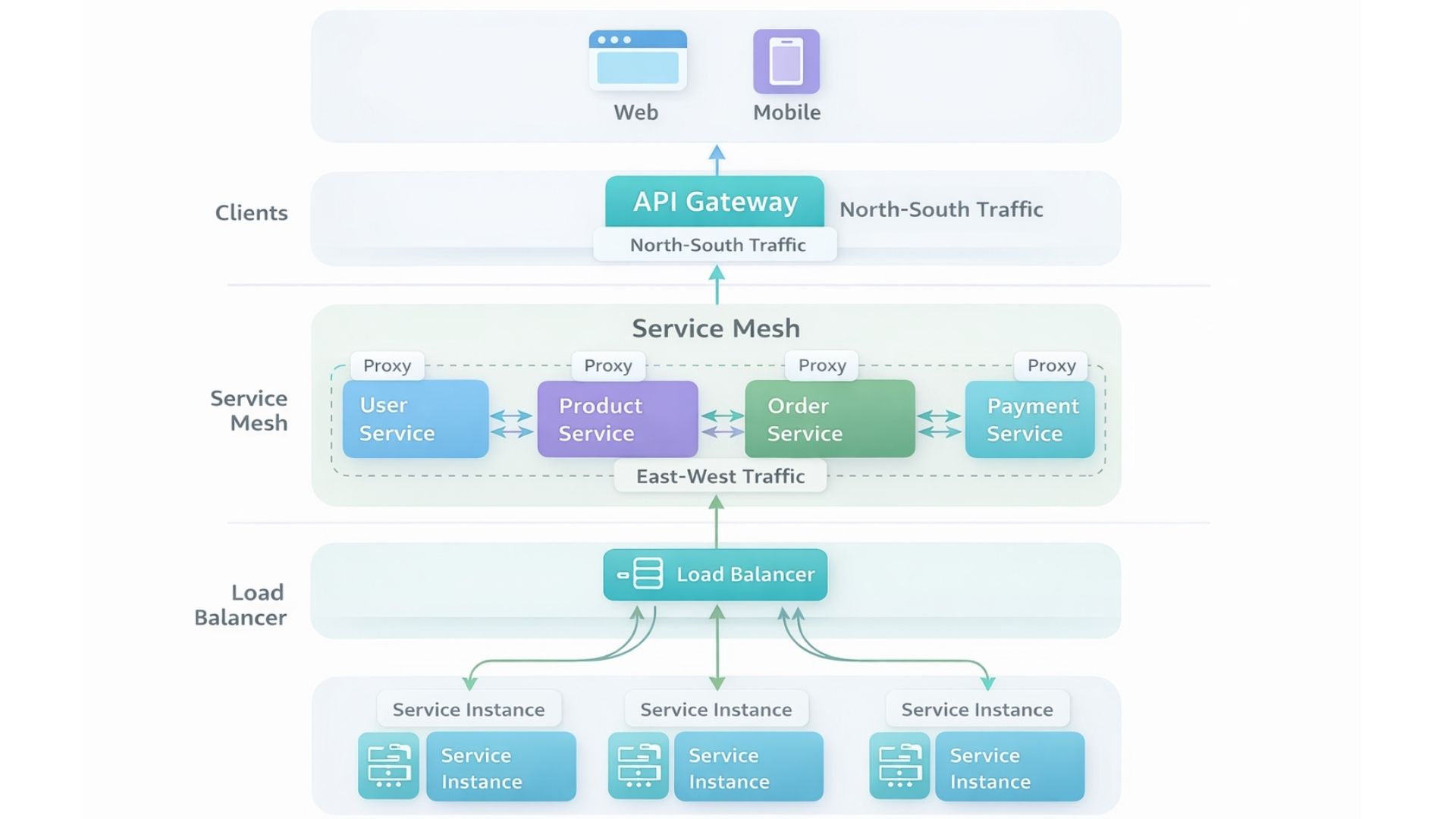

Key Differences between API Gateway, Service Mesh and Load Balancer

Understanding the difference between an API gateway, service mesh, and load balancer is important when designing a microservices system. Each operates at a different layer and handles a specific part of request processing.

An API gateway manages incoming client requests, a service mesh handles communication between services, and a load balancer distributes traffic across service instances. These components are often used together rather than as alternatives.

Comparison Based on Key Factors

When to Use API Gateway, Service Mesh, and Load Balancer Together

An API gateway, service mesh, and load balancer are not competing components they operate at different layers of a microservices architecture and are often used together. The API gateway is responsible for handling external client requests, managing concerns like routing, authentication, and response aggregation.

A service mesh operates internally, managing communication between microservices. It provides fine-grained control over service-to-service traffic, including retries, circuit breaking, and observability, which are not handled by the API gateway.

A load balancer works alongside both by distributing traffic across multiple service instances. In a typical setup, external traffic flows through the API gateway, internal communication is managed by the service mesh, and the load balancer ensures efficient traffic distribution, enabling a scalable and reliable system.

Common API Gateway Implementation Mistakes to Avoid

Even with the right patterns in place, API gateways can become a source of complexity if not designed carefully. Most issues don’t come from the gateway itself but from how responsibilities are assigned and managed over time.

Why You Should Avoid Adding Business Logic to the API Gateway

A common mistake is treating the gateway as a place for business logic instead of keeping it as a routing and control layer. As logic grows, the gateway becomes tightly coupled with services, making changes harder to implement and test.

This often turns the gateway into a bottleneck, where even small feature updates require changes at the gateway layer instead of within individual services.

Avoid Overloading the API Gateway with Responsibilities

API gateways are designed to handle cross-cutting concerns, but overloading them with too many responsibilities can impact performance and maintainability. Adding excessive transformations, validations, and orchestration logic increases processing overhead.

As the system scales, this leads to slower response times and makes the gateway harder to debug and evolve.

Ignoring Latency Impact in API Gateway Design

While a single request passing through the gateway may seem lightweight, combining routing, aggregation, and transformation can introduce noticeable latency if not optimized.

This becomes more critical in high-traffic systems, where inefficient request handling at the gateway can affect overall system responsiveness.

Poor Error Handling in API Gateways and How to Fix It

When a gateway interacts with multiple services, failures in one service can affect the entire response. Without proper fallback mechanisms, partial failures can lead to complete request failures.

Handling timeouts, retries, and fallback responses at the gateway level is essential to maintain system stability during service disruptions.

Lack of Monitoring and Observability in API Gateways

Without proper logging, tracing, and monitoring, it becomes difficult to track how requests flow through the gateway and across services. This makes debugging issues slower and less reliable.

A lack of observability at the gateway level often results in blind spots, especially in distributed systems where multiple services are involved.

Popular API Gateway Tools and When to Use Them

API gateway tools differ based on how they handle routing, security, and communication between services. Some are designed for flexible microservices architectures, while others are optimized for cloud-native deployments or enterprise-level API management.

Instead of comparing features, it is more useful to understand how each tool fits into different architectural setups and where it is typically used in real systems.

Kong

Kong is commonly used in microservices architectures where the gateway needs to handle routing, authentication, and traffic policies across multiple services. Its plugin-based model allows extending functionality without modifying backend services, making it adaptable to patterns like BFF, aggregation, and gateway offloading.

As the system grows, managing plugins and configurations can introduce operational overhead, especially when maintaining consistency across environments.

AWS API Gateway

AWS API Gateway is designed for cloud-native and serverless applications, particularly within the AWS ecosystem. It is often used when APIs act as entry points to Lambda functions or managed services rather than traditional microservices.

This reduces infrastructure management but limits low-level control and increases dependency on AWS, which can affect portability.

NGINX

NGINX is widely used as a reverse proxy in systems where routing and traffic distribution are the primary concerns. It fits well with proxy and routing patterns, especially in architectures that do not require heavy transformation or aggregation.

While highly performant, it does not provide built-in API management features, so additional tooling is often required for more complex use cases.

Traefik

Traefik is designed for dynamic, containerized environments such as Kubernetes. It automatically manages routing and service discovery based on infrastructure changes, making it suitable for rapidly evolving systems.

It works well for routing-heavy use cases but is not intended to handle complex gateway-level processing like aggregation or transformation.

Apigee

Apigee is focused on enterprise API management, where governance, analytics, and policy enforcement are required. It is typically used in systems where APIs are exposed externally and need strict control over access and usage.

This makes it suitable for large-scale environments, though it introduces additional complexity and is less practical for smaller systems.

Envoy Proxy

Envoy is a high-performance proxy used as the foundation for many modern API gateways and service mesh implementations. It is often used as a data plane rather than a standalone gateway, powering tools like Istio and other cloud-native platforms.

It is relevant in architectures that require advanced traffic control and observability, but using it directly requires significant configuration and is typically managed through higher-level tools.

Which API Gateway Tool Fits Your Architecture?

When an API Gateway Is Not the Right Choice?

An API gateway is useful in distributed systems, but it is not always necessary. In simpler architectures, introducing a gateway can add complexity without delivering meaningful benefits.

In small applications with only a few services, direct communication between clients and services is often sufficient. In monolithic systems, where functionality is contained within a single codebase, a gateway does not provide clear value.

API gateways are also less relevant in low-traffic systems where scalability and traffic management are not primary concerns. In latency-critical environments, the additional request layer can introduce overhead that impacts response time.

Overengineering is a common risk. Adding a gateway without a clear architectural need can increase operational overhead and make the system harder to maintain as it evolves.

When an API Gateway Might Be Unnecessary

Conclusion

API gateway patterns define how requests are handled between clients and services in a microservices architecture. They are not interchangeable solutions, but design choices used to address specific problems such as request aggregation, client-specific responses, and traffic control.

The right approach depends on how your system is structured and how requests flow through it. In practice, multiple patterns are often used together to handle different aspects of communication rather than relying on a single design.

An API gateway becomes useful when it simplifies request handling and centralizes concerns like routing and security. If it does not reduce complexity or improve how services interact, adding one may not be necessary.

Frequently Asked Questions (FAQs)
