Guide to Implementing Micro Frontend Architecture

Why Choose Microservices for Modern Development?

Before diving into micro frontends, it’s essential to understand the foundation: microservices architecture. This backend approach divides applications into smaller, self-contained services. Why is this advantageous?

1. Scalability: Scale individual services to meet demand without affecting the entire system, optimizing resources and costs.
2. Independent Deployments: Update or replace specific services without downtime, ensuring smooth rollouts and continuous improvement.
3. Maintainability: Smaller codebases are easier to debug, test, and enhance, reducing long-term technical debt.

These principles directly translate into the concept of micro frontends, which bring the modular approach to the front-end layer.

Understanding Micro Frontends

Micro frontends break down front-end applications into smaller, autonomous modules, each responsible for a distinct functionality. These modules are independently developed, deployed, and managed, often using diverse technologies like React, Angular, Vue, or even Web Components.

Micro frontends make applications more flexible, scalable, and adaptable to changing requirements, aligning with modern development practices like Single SPA (Single Page Application) and progressive enhancement.

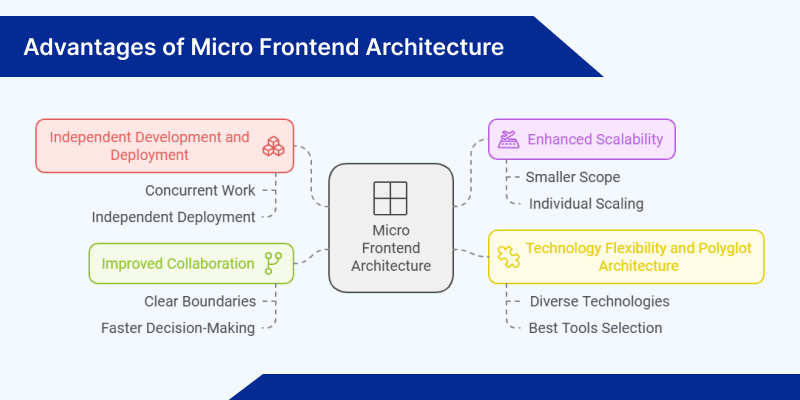

Advantages of Micro Frontend Architecture

Independent Development and Deployment

• Teams can work concurrently on different modules, avoiding bottlenecks.

• Changes to one module can be deployed without affecting the rest of the application.

Enhanced Scalability

• Each module is smaller in scope and can be individually scaled to handle increased user demand.

• Resource usage is optimized by scaling only high-demand modules.

Technology Flexibility and Polyglot Architecture

• Different modules can use diverse technologies, such as combining React for the user dashboard with Angular for admin tools.

• Teams have the freedom to choose the best tools for their specific requirements.

Improved Collaboration

• Clear boundaries between modules empower teams to work independently.

• Reduced dependencies lead to faster decision-making and fewer delays.

Core Technologies for Micro Frontends

Single SPA (Single Page Application)

A popular framework for integrating multiple JavaScript frameworks on a single page, Single SPA provides lifecycle management and routing capabilities tailored for micro frontends.

Webpack Module Federation

An advanced solution for sharing code dynamically between applications. It simplifies dependency management and speeds up build processes, making it ideal for CI/CD for micro frontends.

Web Components

These framework-independent, browser-native components work seamlessly with any library or framework. They’re particularly useful for creating reusable, encapsulated elements.

Iframes

Iframes are an older but effective method for strict module isolation. While they offer excellent security, they may introduce performance overheads and communication challenges.

Custom Solutions

In some cases, tailored solutions are necessary to address unique business needs or to integrate seamlessly with existing systems.

How Do You Implement Micro Frontend Architecture?

Plan the Architecture:

• Define the boundaries for different micro frontends.

• Decide the communication protocol between these micro frontends.

Choose an Integration Method:

• Client-Side Composition: Assemble micro frontends on the client side using frameworks like React, Vue, or Angular.

• Server-Side Composition: Render micro frontends using tools like Server-Side Includes (SSI) or Node.js frameworks.

• Edge-Side Includes (ESI): Ideal for high-performance, content-heavy applications.

Set Up Independent Repositories:

• Use separate repositories for each micro frontend to ensure team autonomy.

Use Module Federation:

• Leverage Webpack Module Federation to share code and dependencies efficiently.

Establish Communication Standards:

• Use mechanisms like event emitters, global state management, or APIs for communication between micro frontends.

Define Deployment Pipelines:

• Implement CI/CD pipelines to deploy each micro frontend independently.

Implement Monitoring and Testing:

• Use testing tools like Jest, Cypress, or Playwright.

• Monitor the performance of individual micro frontends with APM tools.

Building Robust CI/CD Pipelines for Micro Frontends

Effective CI/CD (Continuous Integration/Continuous Deployment) pipelines are critical for managing micro frontends.

1. Independent Pipelines:

   Each module should have its own CI/CD pipeline for parallel development, testing, and deployment.

2. Automated Testing:

   Implement unit, integration, and end-to-end tests for each module to ensure stability.

3. Version Control for Micro Frontends:

   Use semantic versioning for shared libraries and modules to ensure compatibility. Rollback mechanisms should be in place for reverting faulty updates.

4. Orchestration Tools:

   Platforms like Kubernetes and Docker can manage deployments, ensure containerization, and handle load balancing efficiently.

5. Continuous Monitoring: Tools like Prometheus or Datadog can monitor individual modules for performance issues, ensuring reliability and quick issue resolution.

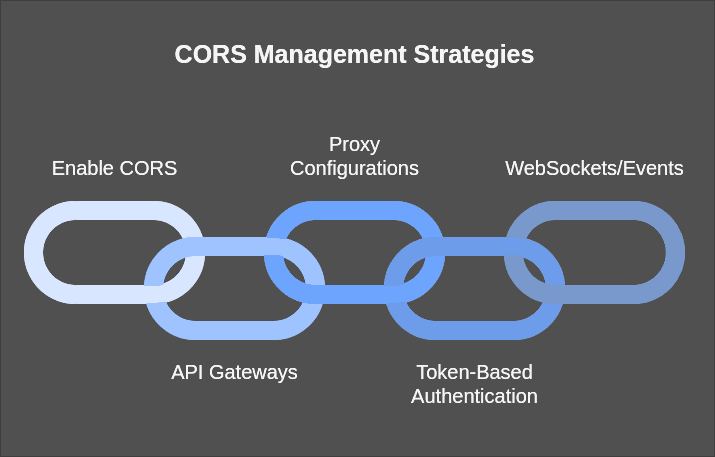

Managing CORS in Micro Frontends

In a micro frontend setup, modules often run on separate servers or domains, leading to CORS challenges. Here are some solutions:

1. Enable CORS on Servers:

   Configure server headers like Access-Control-Allow-Origin to permit requests from authorized domains.

2. API Gateways:

   Centralize CORS configuration by routing all API requests through an API gateway, enhancing security and simplifying management.

3. Proxy Configurations:

   During development, use proxy settings (e.g., in React's package.json) to bypass CORS restrictions.

4. Token-Based Authentication:

   Use secure token-based headers for cross-origin communication.

5. WebSockets or Server-Sent Events: These technologies bypass CORS restrictions, enabling real-time updates between modules.

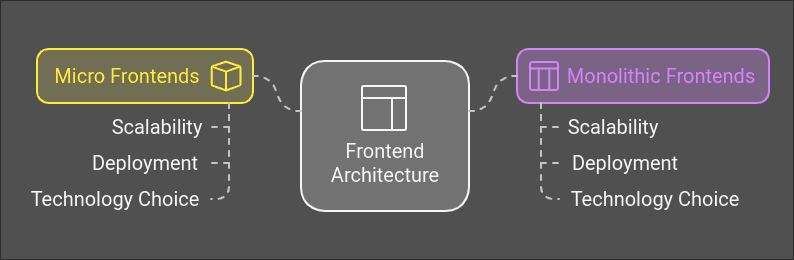

Micro Frontends vs. Monolithic Frontends

Industry Applications of Micro Frontend Architecture

E-Commerce Platforms

• Separate modules for product catalogs, shopping carts, and checkout flows enable independent updates.

Media Applications

• Modularized video streaming, analytics dashboards, and personalized recommendation engines.

SaaS Solutions

• Dashboards customized to specific roles, such as admin, user, and guest, are developed and deployed as separate modules.

Best Approaches for Micro Frontend Architecture

• Maintain Loose Coupling: Minimize dependencies between modules to ensure they remain independent and easily interchangeable.

• Optimize Shared Libraries: Use common utilities wisely, balancing compatibility with reduced duplication.

• Performance Optimization: Utilize lazy loading for non-critical modules and preload essential resources to improve application speed.

• Version Control for Micro Frontends: Establish clear versioning practices to handle updates and rollbacks efficiently.

• Focus on Testing and Monitoring: Robust testing and continuous monitoring are essential for maintaining module stability and user satisfaction.

Popular Frameworks to Implement Micro Frontends

• Single-SPA: Integrates multiple JavaScript frameworks into a single front-end application.

• Module Federation: A Webpack 5 feature for dynamic code sharing and loading between applications.

• Qiankun: A lightweight framework based on Single-SPA, optimized for performance.

• Piral: Supports scalable micro frontend development with multiple technologies.

• Tailor: A layout service for server-side composition of micro frontends.

• FrintJS: A framework designed for modular front-end applications.

By leveraging technologies like Single SPA, addressing challenges such as CORS, and implementing robust CI/CD pipelines, micro frontend architecture offers a scalable, flexible, and maintainable approach to modern web application development. It empowers teams to deliver high-quality user experiences while fostering innovation and faster development cycles.
