Integration Guide with Spring Boot

Spring Boot offers a powerful and flexible foundation, whether you're building microservices, web apps, or enterprise-level systems

Spring Boot is an open-source Java-based framework designed to simplify the development of Spring applications. It provides a streamlined approach to building production-ready applications with minimal configuration. By eliminating the need for extensive boilerplate code, Spring Boot allows developers to focus on the core functionality of their applications. With built-in support for embedded servers, dependency injection, and various tools for monitoring and security, Spring Boot is widely used to create scalable and robust applications. Spring Boot offers a powerful and flexible foundation, whether you're building microservices, web apps, or enterprise-level systems.

What is Spring?

Spring Framework is a Java platform that provides comprehensive infrastructure support for developing Java applications. Spring Framework is an open-source software development framework that provides infrastructure support for building Java applications. It allows developers to focus on their application's business logic, rather than infrastructure.

Problem with Spring Framework

Complex configuration: Requires extensive manual configuration, either through XML files or Java annotations. This can lead to verbose and error-prone setups, especially for large projects.

Inconsistent Configurations: Managing and maintaining configurations across different environments (development, testing, production) can be cumbersome and prone to inconsistencies.

Boilerplate Code: Developers often need to write a significant amount of boilerplate code to set up the application context, configure beans, and handle dependencies.

Manual Dependency Management: In Spring Framework, developers must manually manage dependencies, which can lead to conflicts and version mismatches. Ensuring compatibility among different libraries and Spring modules can be challenging.

External Servlet Containers: Spring Framework requires an external servlet container (like Tomcat, or Jetty) for deployment, which adds complexity to the deployment process.

To Solve all these issues SpringBoot comes into the pictures

What is SpringBoot?

Spring Boot is an extension of the Spring Framework, a powerful and widely used framework for building enterprise-level Java applications. While the Spring Framework offers a comprehensive toolkit for developing complex applications, Spring Boot streamlines the process by providing a more efficient, opinionated approach to building Spring-based applications. Its goal is to make it easier to create stand-alone, production-ready applications with minimal configuration.

Key Features of Spring Boot:


Spring Initializr: A web tool for quickly generating Spring Boot projects with pre-configured dependencies, reducing setup time and effort.


Auto-Configuration: Automatically configures the application based on included dependencies, minimizing the need for manual configuration.


Standalone Applications: Allows the creation of applications that run independently with java -jar, embedding servers like Tomcat or Jetty.


Production-Ready Features: Includes built-in tools like Spring Boot Actuator for monitoring, health checks, and configuration management in production environments.


Microservices Support: Ideal for building microservices with easy setup for RESTful services, embedded servers, and integration with Spring Cloud.


Auto-Configuration Servers: Automatically configures services (e.g., RabbitMQ) based on dependencies, speeding up development.

Getting Started with SpringBoot

To begin with, Spring Boot, create your first project using Spring Initializr.

Follow these steps:

Using Spring Initializr: Visit Spring Initializr (https://start.spring.io/), fill in project metadata (e.g., Group, Artifact), and select dependencies like Web, JPA, or Security. Click "Generate" to download a ready-to-use project.

Build Tools: Choose between Maven (XML-based, straightforward) or Gradle (flexible, Groovy/Kotlin-based). Maven is a good starting point for beginners.

Incorporating Lombok: Add Lombok to reduce boilerplate code (e.g., getters, setters) and keep your code clean.

Import into IDE: Import the project into your preferred IDE (e.g., IntelliJ, Eclipse) to start coding quickly.

Setup

<dependency> <groupId>org.springframework.integration</groupId> <artifactId>spring-integration-core</artifactId> <version>6.0.0</version> </dependency> <dependency> <groupId>org.springframework.integration</groupId> <artifactId>spring-integration-file</artifactId> <version>6.0.0</version> </dependency>

You can download the latest versions of Spring Integration Core and the Spring Integration File Support from Maven Central.

Spring Integration

Spring Integration is a framework designed to help integrate different systems and components within an enterprise application. It provides a way to handle communication, message processing, and integration between disparate systems, such as databases, message queues, web services, and more, in a flexible and maintainable way.

Imagine building a large e-commerce application that interacts with various systems like payment gateways, inventory management, and shipping services. Without a structured approach, you’d end up with complex, hard-to-maintain code that directly integrates each system, leading to tightly coupled components. Spring Integration simplifies this by providing a consistent framework to handle these interactions. It uses integration patterns and tools to ensure loose coupling, making the system easier to maintain and scale.

Core Concepts of Spring Integration

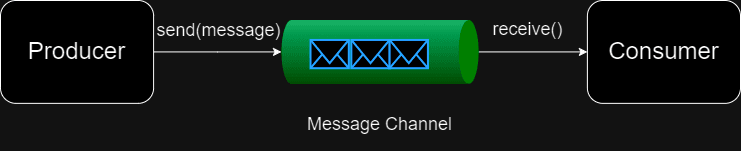

Spring Integration Core Blocks

Messages:

The org.springframework.integration.Message Interface represents the fundamental unit of data transfer within a Spring Integration system. Here's a simple breakdown:

1public interface Message<T> {
2 T getPayload();
3 MessageHeaders getHeaders();
4}
    • Message headers, are essentially a key-value container that can transmit metadata, as defined in the org.springframework.integration.MessageHeaders class
    • The message payload, which is the actual data that is of value to be transferred — in our use-case, the video file is the payload

Channels:

In Spring Integration (and Enterprise Application Integration), a channel serves as the main pathway for transmitting messages between different systems. Think of it as a pipe that connects different systems, allowing messages to flow back and forth.

This "pipe" is crucial to any integration process, facilitating communication between components. Channels come in many types depending on your needs, and they're easy to configure without writing custom code. If you have special requirements, the framework provides options for customization.


Point-to-Point (P2P) channels: Create direct connections between two components, allowing one to send a message and the other to receive it. Only one component can exist at each end of the channel.

1@Bean
2public MessageChannel fileChannel1() {
3 return new DirectChannel();
4}
5
6@Bean
7public MessageChannel fileChannel2() {
8 return new DirectChannel();
9}
10
11@Bean
12public MessageChannel fileChannel3() {
13 return new DirectChannel();
14}

Each channel is identified by the method that defines it.


Publish-Subscribe (Pub-Sub) channels allow one component to send messages to multiple receivers. You can replace a P2P channel with a Pub-Sub channel like this:

1@Bean
2public MessageChannel pubSubFileChannel() {
3 return new PublishSubscribeChannel();
4}
5
6@Bean
7@InboundChannelAdapter(value = "pubSubFileChannel", poller = @Poller(fixedDelay = "1000"))
8public MessageSource<File> fileReadingMessageSource() {
9 FileReadingMessageSource sourceReader = new FileReadingMessageSource();
10 sourceReader.setDirectory(new File(INPUT_DIR));
11 sourceReader.setFilter(new SimplePatternFileListFilter(FILE_PATTERN));
12 return sourceReader;
13}
14

We have now converted the inbound channel adapter to publish to a Pub-Sub channel. This will allow us to send the files that are being read from the source folder to multiple destinations.

Consumers:

Endpoints act as the entry and exit points for messages. They can be producers (sending messages), consumers (receiving messages), or both.

Producer Endpoint (Sending video file)

This endpoint simulates uploading (sending) a video file from a client (producer) to the server. The file can then be stored or further processed.

1@RestController
2@RequestMapping("/api/videos")
3public class VideoController {
4
5 // Producer Endpoint (Uploads video file)
6 @PostMapping("/upload")
7 public ResponseEntity<String> uploadVideo(@RequestParam("file") MultipartFile file) {
8 if (file.isEmpty()) {
9 return ResponseEntity.badRequest().body("No video file provided!");
10 }
11
12 try {
13 // Save the video file to a local directory (e.g., /uploads)
14 String filePath = "uploads/" + file.getOriginalFilename();
15 File destinationFile = new File(filePath);
16 file.transferTo(destinationFile);
17 return ResponseEntity.ok("Video uploaded successfully!");
18 } catch (IOException e) {
19 e.printStackTrace();
20 return ResponseEntity.status(500).body("Error uploading video!");
21 }
22 }
23}

Consumer Endpoint (Downloading video file)

This endpoint allows the client (consumer) to retrieve or download the video file from the server.

1import java.io.File;
2import java.nio.file.Path;
3import java.nio.file.Paths;
4
5@RestController
6@RequestMapping("/api/videos")
7public class VideoDownloadController {
8
9 // Consumer Endpoint (Downloads video file)
10 @GetMapping("/download/{filename}")
11 public ResponseEntity<Resource> downloadVideo(@PathVariable String filename) {
12 try {
13 // Load the video file from the local directory (e.g., /uploads)
14 Path filePath = Paths.get("uploads/" + filename);
15 Resource resource = new UrlResource(filePath.toUri());
16
17 if (resource.exists()) {
18 return ResponseEntity.ok()
19 .header(HttpHeaders.CONTENT_DISPOSITION, "attachment; filename=\"" + resource.getFilename() + "\"")
20 .body(resource);
21 } else {
22 return ResponseEntity.notFound().build();
23 }
24 } catch (Exception e) {
25 e.printStackTrace();
26 return ResponseEntity.status(500).build();
27 }
28 }
29}
30


Practical Examples Of Spring Integration

File Polling

1. File Polling and Processing: to process files from a directory as they arrive. Here's how Spring Integration can help:


1@Configuration
2public class FilePollingConfig {
3
4 @Bean
5 public IntegrationFlow filePollingFlow() {
6 return IntegrationFlows.from(
7 Files.inboundAdapter(new File("input-Directory"))
8 .patternFilter("*.txt")
9 .autoCreateDirectory(true))
10 .transform(File.class, String.class, File::toString)
11 .handle(String.class, this::processFile)
12 .get();
13 }
14
15 private void processFile(String content) {
16 // Process the file content here
17 System.out.println("File content: " + content);
18 }
19}
20

In this example, a FileInboundChannelAdapter is used to poll a directory for files with a .txt extension. The file content is then transformed into a String and processed using the processFile method.

Message Routing

2. Message Routing Based on ContentSuppose you want to route messages to different channels based on their content:

1@Configuration
2public class MessageRoutingConfig {
3    @Bean
4    public IntegrationFlow routingFlow() {
5        return IntegrationFlows.from(MessageChannel.direct())
6                .filter(Message::getHeaders, headers -> headers.get("type").equals("order"))
7                .route(Message::getHeaders, headers -> (String) headers.get("type"))
8                .get();
9    }
10}

This configuration creates a flow that filters incoming messages based on a "type" header. Messages with a "type" of "order" are routed to a channel named "orderChannel," while others are routed to a channel named "otherChannel."

Integrating with External Systems

3. Integrating with External Systems Spring Integration provides adapters for various external systems. Here's an example of integrating with a web service:

1@Configuration
2public class WebServiceIntegrationConfig {
3
4    @Bean
5    public IntegrationFlow webServiceIntegrationFlow() {
6        return IntegrationFlows.from(MessageChannel.direct())
7                .handle(HttpOutboundGateway.builder("http://example.com/api/process")
8                        .httpMethod(HttpMethod.POST)
9                        .expectedResponseType(String.class)
10                        .build())
11                .get();
12    }
13}

In this example, an HttpOutboundGateway is used to send messages to a web service endpoint. The response from the web service is then handled by the subsequent components in the flow.

Summary: How Spring Integration is Useful

Spring Integration enhances enterprise application integration by providing a flexible messaging framework. It simplifies the development of complex systems by supporting error handling with retry mechanisms, dead-letter channels for failed messages, and transaction support to ensure atomic message processing. With Spring Security, it enforces access controls on message flows, ensuring secure communication. Additionally, it offers robust monitoring tools to track performance, diagnose issues, and optimize message flows. These features make Spring Integration a powerful tool for building scalable, reliable, and secure integration solutions in distributed systems.
