What is an Orchestration Layer?

An orchestration layer is a component or framework that coordinates and manages the execution of various tasks or services within a larger system. It acts as an intermediary between different components or services to ensure they work together.

Objective

1. An orchestration layer simplifies the process of managing multiple components or services by handling the coordination for you.
2. The orchestration layer also acts as a central control point that sequences, schedules, and coordinates tasks.
3. Orchestration layer allows developers to focus on building individual components without worrying about how they will interact with each other.

Types

API Orchestration

• API orchestration involves coordinating and managing multiple API calls to different services to perform a complex task or process.

• Instead of a client making multiple individual requests to different services and handling the logic to combine their responses, an orchestration layer abstracts this complexity by handling the communication, sequencing, and integration of these API calls.

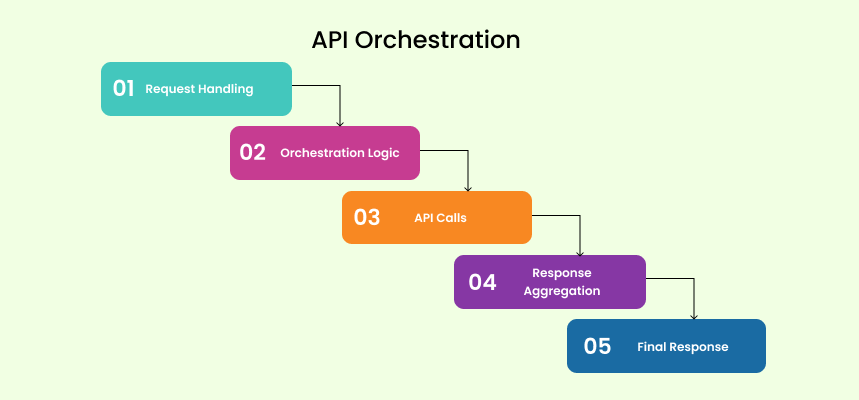

Working:

1. Request Handling: Client sends a request to the orchestration layer.
2. Orchestration Logic: Then the orchestrator determines which APIs need to be called, in what sequence, and whether any calls can be made in parallel.
3. API Calls: The orchestrator makes the necessary API calls to various services, handles their responses, and combines them as needed.
4. Response Aggregation: The orchestrator processes and aggregates the responses from different services, performing any required transformations or business logic.
5. Final Response: The orchestrator sends the final combined response back to the client.

Example: Apigee (by Google Cloud): A full lifecycle API management platform that includes capabilities for API orchestration, such as API gateway, traffic management, and API versioning.

Data Orchestration

• Data orchestration involves managing and coordinating the flow of data across different systems, applications, and storage locations to ensure that data is available, consistent, and usable when needed.

• It automates the process of extracting, transforming, and loading (ETL) data, integrating data from various sources, and preparing it for analysis or other business processes.

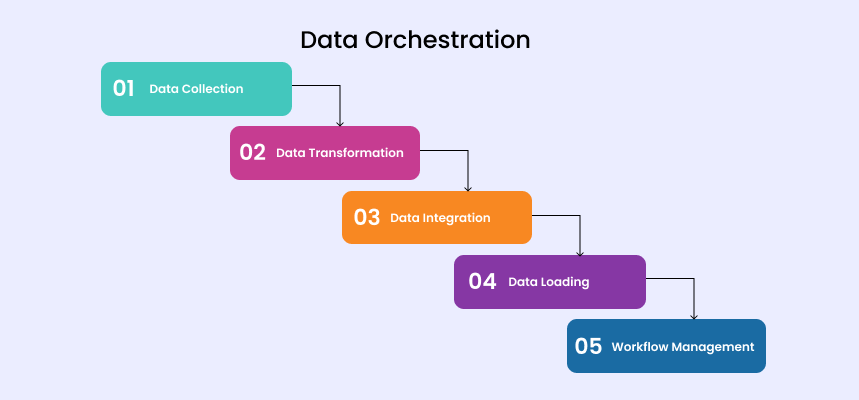

Working:

1. Data Collection: Collect data from various sources such as databases, APIs, flat files, and real-time streams.
2. Data Transformation: Apply transformations to cleanse, normalize, and enrich the data, making it suitable for analysis or other processes.
3. Data Integration: Combine data from different sources, creating a unified dataset that can be easily analyzed.
4. Data Loading: Load the processed data into a target system, such as a data warehouse, data lake, or analytics platform.
5. Workflow Management: Manage and monitor data workflows to ensure they run smoothly, handle errors, and retry failed processes if needed.

Example: AWS Glue: A fully managed extract, transform, and load (ETL) service provided by AWS for orchestrating data integration tasks, including data discovery, schema mapping, and job scheduling.

Network Orchestration

• Network orchestration involves the automated management, coordination, and optimization of network resources and services to ensure efficient and reliable network operations.

• It encompasses various tasks such as configuring network devices, managing data traffic, and ensuring network security, often using software-defined networking (SDN) and network function virtualization (NFV) technologies.

Working:

1. Configuration Management: Automate the configuration of network devices such as routers, switches, and firewalls, ensuring they are set up correctly and consistently.
2. Traffic Management: Monitor and manage data traffic to optimize performance, prevent congestion, and ensure efficient routing.
3. Resource Provisioning: Automatically provision network resources such as bandwidth, virtual network functions, and connectivity based on current needs.
4. Policy Enforcement: Implement security policies and compliance rules, ensuring that network traffic adheres to organizational and regulatory standards.
5. Monitoring and Analytics: Continuously monitor network performance and collect data for analysis, helping to identify and resolve issues proactively.

Example: Cisco ACI (Application Centric Infrastructure): Cisco's SDN solution for automating network configuration and management.

Security Orchestration

• Security orchestration involves the automated management and coordination of security tools and processes to enhance the efficiency and effectiveness of security operations.

• It integrates various security systems, streamlines workflows, and enables faster detection, investigation, and response to security threats.

Working:

1. Integration: Connect various security tools and systems such as SIEM (Security Information and Event Management), firewalls, intrusion detection systems, and endpoint protection solutions.
2. Automation: Automate routine security tasks and workflows, such as scanning for vulnerabilities, responding to alerts, and blocking malicious activities.
3. Incident Response: Orchestrate the steps involved in responding to a security incident, from detection and analysis to containment, eradication, and recovery.
4. Threat Intelligence: Integrate threat intelligence feeds to enhance the detection and analysis of potential threats, enabling proactive security measures.
5. Monitoring and Analytics: Continuously monitor security events and analyze data to identify patterns and trends, helping to detect and respond to threats more effectively.

Example: Splunk Phantom: A security orchestration, automation, and response (SOAR) platform that automates security operations and incident response workflows.

Container orchestration

• Container orchestration involves managing the deployment, scaling, and operation of containerized applications.

• It automates the processes required to run container-based services, ensuring that containers are deployed, networked, secured, and scaled effectively.

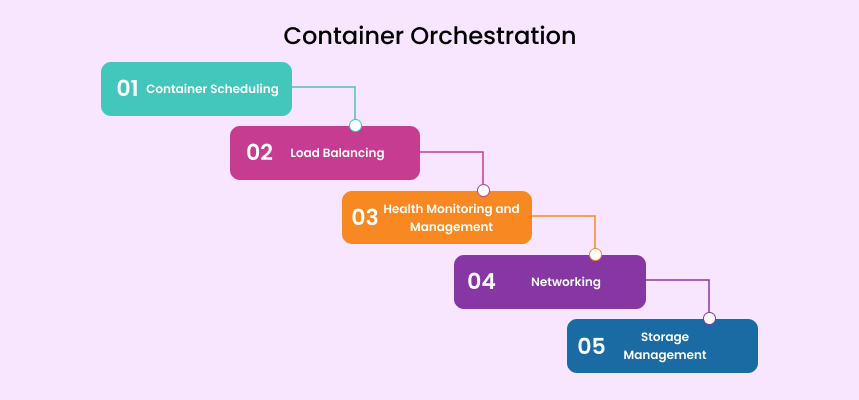

Working:

1. Container Scheduling: Automatically schedule and place containers on available nodes based on resource requirements and constraints.
2. Load Balancing: Distribute incoming traffic across multiple containers to ensure balanced load and high availability.
3. Health Monitoring and Management: Continuously monitor the health of containers and automatically restart or replace unhealthy containers.
4. Networking: Manage networking for containers, including service discovery, communication between containers, and external access.
5. Storage Management: Handle persistent storage for containers, ensuring data is available and durable.

Example: Kubernetes: An open-source container orchestration platform for automating deployment, scaling, and management of containerized applications.

How is it Beneficial?

An orchestration layer, often referred to as an orchestration platform, is beneficial in various ways, particularly in complex systems where multiple services, processes, or tasks need to be coordinated and managed.

1. Centralized Management: An orchestration layer provides a single point of control for managing different components and services. This centralized approach simplifies the deployment, monitoring, and scaling of applications.
2. Automation: Automation of workflows and processes is a core benefit of orchestration. By defining rules and workflows, the orchestration layer can automate tasks such as scaling resources, handling failures, and deploying updates, reducing manual intervention and errors.
3. Resource Optimization: Orchestration helps in efficient resource utilization by automatically scaling resources up or down based on demand. This can lead to cost savings and improved performance.
4. Improved Scalability: With orchestration, applications can be scaled dynamically based on usage patterns. This ensures that services can handle varying loads without manual intervention.
5. Resilience and Fault Tolerance: An orchestration layer can monitor the health of services and automatically recover from failures. This increases the resilience of the system and reduces downtime.
6. Standardization and Consistency: By defining processes and configurations in a consistent manner, orchestration helps in maintaining standardization across different environments, such as development, testing, and production.
7. Simplified Deployment: Orchestration platforms often support Infrastructure as Code (IaC) and continuous integration/continuous deployment (CI/CD) pipelines, simplifying the deployment process and ensuring that code moves smoothly from development to production.
8. Integration and Interoperability: Orchestration layers can integrate with various tools, services, and platforms, allowing different parts of a system to work together seamlessly. This is particularly useful in microservices architectures.
9. Security and Compliance: Orchestration can enforce security policies and compliance requirements across the system. It can ensure that security measures, such as encryption and access controls, are consistently applied.

Overall, an orchestration layer enhances the efficiency, reliability, and manageability of complex systems, making it a crucial component in modern IT and cloud infrastructures.

Top Orchestration Tools

Kubernetes

Kubernetes is an open-source platform designed to automate the deployment, scaling, and management of containerized applications. It was originally developed by Google and is now maintained by the Cloud Native Computing Foundation (CNCF).

Key Features:

• Container Orchestration: Manages the lifecycle of containers, ensuring they are properly deployed, scaled, and updated.

• Self-Healing: Automatically replaces or restarts containers that fail, ensuring high availability.

• Load Balancing and Service Discovery: Distributes network traffic to ensure that no single container becomes overwhelmed, and provides an internal mechanism for services to find each other.

• Horizontal Scaling: Automatically scales applications up or down based on demand.

Use Case: Ideal for managing complex applications composed of multiple microservices, particularly when containerization is used. Kubernetes is widely adopted in both cloud and on-premises environments.

Docker Swarm

Docker Swarm is the native clustering and orchestration tool for Docker containers. It integrates seamlessly with Docker, providing an easy way to scale and manage containerized applications.

Key Features:

• Native Docker Integration: Works directly with Docker, using the same Docker API, making it easy for Docker users to adopt.

• Clustering: Combines multiple Docker hosts into a single virtual host, enabling simple management of containers across a cluster.

• Service Discovery and Load Balancing: Automatically manages service discovery and load balancing, distributing traffic evenly across containers.

• Rolling Updates: Allows for the gradual update of services without downtime, ensuring continuous availability.

Use Case: Best suited for users already familiar with Docker who want a simple and integrated solution for managing containerized applications. It's a good choice for smaller-scale deployments or those looking for less complexity than Kubernetes.

OpenShift

OpenShift is a comprehensive enterprise Kubernetes platform developed by Red Hat. It extends Kubernetes with additional tools and features for developers and operations teams, providing a platform-as-a-service (PaaS) experience.

Key Features:

• Developer Tools: Includes integrated CI/CD pipelines, application templates, and source-to-image (S2I) builds, simplifying the development process.

• Security and Compliance: Offers advanced security features, including role-based access control (RBAC), network policies, and integrated security scanning.

• Multi-Cloud Support: Can be deployed across various cloud providers, as well as on-premises, providing flexibility in deployment options.

• Integrated Monitoring and Logging: Provides out-of-the-box monitoring, logging, and metrics to help manage and optimize applications.

Use Case: Ideal for enterprises looking for a robust, supported Kubernetes platform with additional features for developers and operations teams. It's especially useful for organizations with strict security and compliance requirements.

Helm

Helm is a package manager for Kubernetes that simplifies the deployment and management of applications. It uses a packaging format called "charts" to define, install, and upgrade even the most complex Kubernetes applications.

Key Features:

• Charts: Reusable, versioned packages that contain Kubernetes resource definitions and configurations.

• Dependency Management: Handles dependencies between charts, making it easier to manage complex applications with multiple components.

• Templating: Uses a templating engine to allow for customizable and reusable configurations, enabling the same chart to be used across different environments.

• Release Management: Helm tracks releases of charts, providing easy rollback in case of issues during upgrades.

Use Case: Perfect for managing Kubernetes applications, especially when dealing with complex configurations or when deploying the same application across multiple environments. Helm is popular among developers and DevOps teams for its simplicity and efficiency.

Terraform

Terraform is an open-source Infrastructure as Code (IaC) tool developed by HashiCorp. It allows users to define and provision infrastructure using a high-level configuration language, supporting a wide range of cloud providers and services.

Key Features:

• Provider Support: Supports numerous cloud providers (AWS, Azure, GCP, and more) and services, allowing for a unified configuration across different environments.

• Infrastructure as Code (IaC): Enables infrastructure to be described in code, versioned, and reused, promoting consistency and reducing errors.

• State Management: Maintains the state of the infrastructure, allowing for tracking and managing changes over time.

• Resource Graph: Builds a graph of all resources, enabling Terraform to create, update, and delete resources efficiently.

Use Case: Ideal for teams looking to automate the provisioning and management of infrastructure across various cloud providers. It's especially valuable in environments where consistency and repeatability are critical, such as in DevOps and continuous delivery pipelines.

Conclusion

Overall, the orchestration layer plays a critical role in managing and streamlining complex IT environments by automating the coordination of multiple systems, applications, and processes.

By understanding its types, benefits, and available tools, organizations can optimize their operations, improve scalability, and enhance reliability. As businesses continue to adopt cloud-native technologies and microservices architectures, the need for efficient orchestration becomes even more crucial.

Investing in a robust orchestration strategy is not just about improving efficiency—it's about enabling innovation and staying competitive in an increasingly digital world.
