Detailed Guide on How to Develop a Chatbot

profile
Yash BhanushaliSoftware Engineerauthor linkedin
Published On
Updated On
Table of Content
up_arrow

As artificial intelligence revolutionizes customer service and user interactions, chatbots have become an essential tool for businesses and developers alike.

This comprehensive guide will walk you through the process of developing a sophisticated chatbot from conception to deployment, with detailed technical implementations.

Understanding the Fundamentals

Before diving into development, it's crucial to understand what makes a chatbot effective.

A chatbot is an AI-powered software designed to interact with users through natural language processing (NLP).

The best chatbots combine technical capability with user-centric design to create meaningful conversations.


Types of Chatbots

1. Rule-based Chatbots

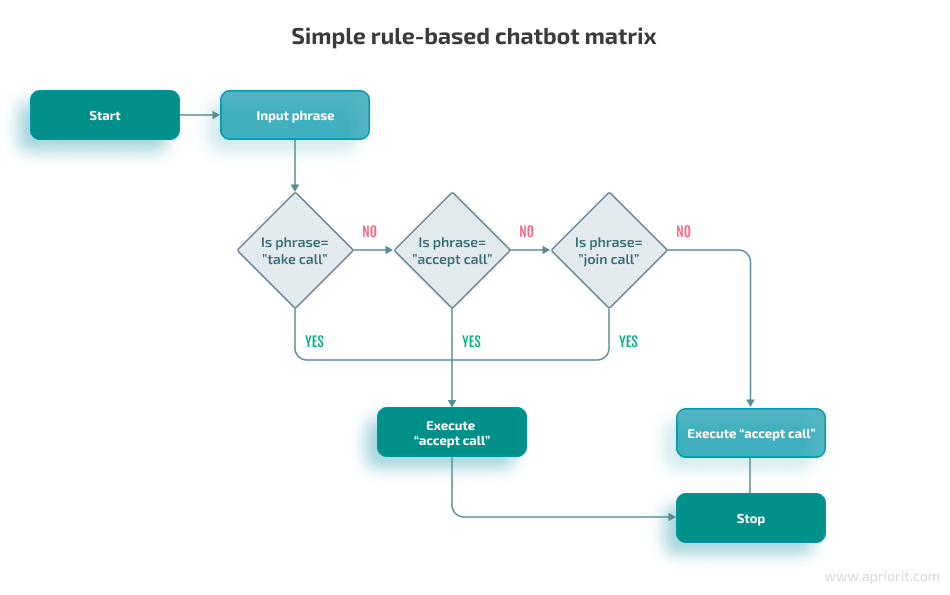

chatbot_img1

Rule-based chatbots follow predefined patterns and responses.

A rule-based chatbot is a type of conversational agent that uses predefined rules and decision trees to respond to user inputs.

Unlike AI-powered chatbots, rule-based chatbots rely on conditional logic, pattern matching, and scripts instead of machine learning or natural language processing.

How Rule-Based Chatbots Work

  1. Predefined Rules: The developer creates a set of "if-then-else" rules to determine the chatbot's responses.

    • Example: If a user says "Hi," the chatbot responds with "Hello! How can I assist you?"

  2. Keyword Matching: The chatbot searches for specific keywords or patterns in the user's input to trigger the appropriate response.

  3. Decision Trees: These chatbots use flowcharts to guide conversations. Each user input leads to a specific branch in the conversation tree.

  4. Regular Expressions: Developers often use regular expressions for pattern recognition to handle variations in user input.

    • Example: Matching "Can you tell me about [topic]?"

Features of Rule-Based Chatbots

  • Deterministic Responses: The output is predictable because the rules are predefined.

  • Structured Conversations: Works well with linear and predictable interactions.

  • No Learning Ability: They cannot adapt to new inputs outside the defined rules.

  • Fast Setup: Easy to develop for simple use cases.

Advantages

  • Control: Developers have full control over the chatbot's behavior.

  • Cost-Effective: Cheaper and faster to develop compared to AI chatbots.

  • Predictable Responses: Ensures consistency in responses.

  • Good for Specific Use Cases: Ideal for FAQs, surveys, and basic customer support.

Disadvantages

  • Limited Flexibility: Cannot handle complex or unstructured queries effectively.

  • Scalability Issues: Becomes difficult to maintain as the number of rules increases.

  • No Personalization: Cannot understand user context or history.

  • No Learning Capability: Cannot improve over time without manual updates.

Use Cases

  • Customer Support: Answering frequently asked questions (FAQs).

  • Surveys and Feedback: Gathering input through predefined questions.

  • E-Commerce: Helping users navigate products and check order statuses.

  • Internal Tools: Guiding employees through processes or policies.

Tools for Building Rule-Based Chatbots

  • Dialogflow (with rule-based settings)

  • Microsoft Bot Framework

  • Chatfuel (for basic bots)

  • Tars

  • Rasa (can combine rule-based and AI-based logic)

  • ManyChat (for marketing chatbots)

Here's a simple implementation:

class RuleBasedBot:
def __init__(self):
self.rules = {
r'hello|hi|hey': ['Hello!', 'Hi there!', 'Hey!'],
r'how are you': ['I'm doing well, thanks!', 'Great, how can I help?'],
r'bye|goodbye': ['Goodbye!', 'See you later!'],
r'help|support': ['How can I assist you?', 'What do you need help with?']
}

def get_response(self, user_input):
user_input = user_input.lower()
for pattern, responses in self.rules.items():
if re.search(pattern, user_input):
return random.choice(responses)
return "I'm not sure I understand. Could you rephrase that?"

# Usage example
bot = RuleBasedBot()
response = bot.get_response("Hello there!") # Returns a greeting

2. AI-powered Chatbots

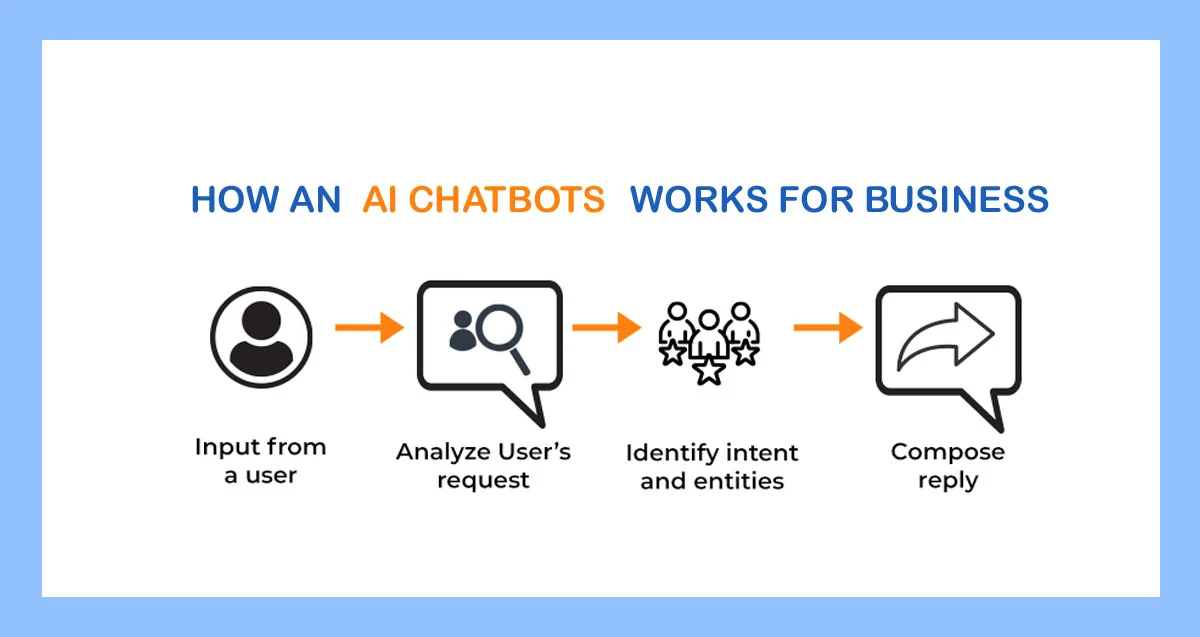

ai_chatbot

These sophisticated bots use machine learning and NLP. An AI-powered chatbot is a conversational agent that uses artificial intelligence, including machine learning (ML) and natural language processing (NLP), to understand and respond to user inputs dynamically.

Unlike rule-based chatbots, these chatbots can learn, adapt, and handle complex, unstructured queries.

How AI-Powered Chatbots Work

  1. Natural Language Processing (NLP):

    • Breaks down and interprets user input to extract intent and context.

    • Example: User says, "What's the weather in Paris?" The chatbot recognizes "weather" as the intent and "Paris" as the location.

  2. Machine Learning (ML):

    • Allows the chatbot to improve over time by learning from user interactions.

    • Example: If users often ask a specific question, the bot can adapt to respond better in the future.

  3. Knowledge Base:

    • Uses existing knowledge, databases, or APIs to provide accurate responses.

    • Example: Integrates with CRM systems or FAQ databases for customer service.

  4. Response Generation:

    • Generates appropriate responses based on user queries using:

      • Retrieval-based approaches: Matches user input with predefined responses.

      • Generative approaches: Creates new responses on the fly using AI (e.g., GPT models).

  5. Context Management:

    • Maintains the conversation context, enabling multi-turn conversations (e.g., remembering previous user inputs).

Key Features

  • Dynamic Responses: Can generate contextually relevant answers.
  • Multi-Turn Conversations: Handles back-and-forth interactions naturally.
  • Personalization: Adapts responses based on user preferences or history.
  • Learning and Adaptation: Learns from new inputs to improve accuracy.
  • Multilingual Support: Can handle multiple languages with NLP models.

Here's a basic implementation using transformers:

from transformers import AutoModelForSequenceClassification, AutoTokenizer
import torch

class AIBot:
def __init__(self):
self.tokenizer = AutoTokenizer.from_pretrained("bert-base-uncased")
self.model = AutoModelForSequenceClassification.from_pretrained("bert-base-uncased")
self.intent_labels = ["greeting", "farewell", "question", "complaint"]

def classify_intent(self, text):
inputs = self.tokenizer(text, return_tensors="pt", padding=True, truncation=True)
outputs = self.model(**inputs)
predictions = torch.softmax(outputs.logits, dim=1)
intent_id = torch.argmax(predictions, dim=1).item()
return self.intent_labels[intent_id]

Planning Your Chatbot

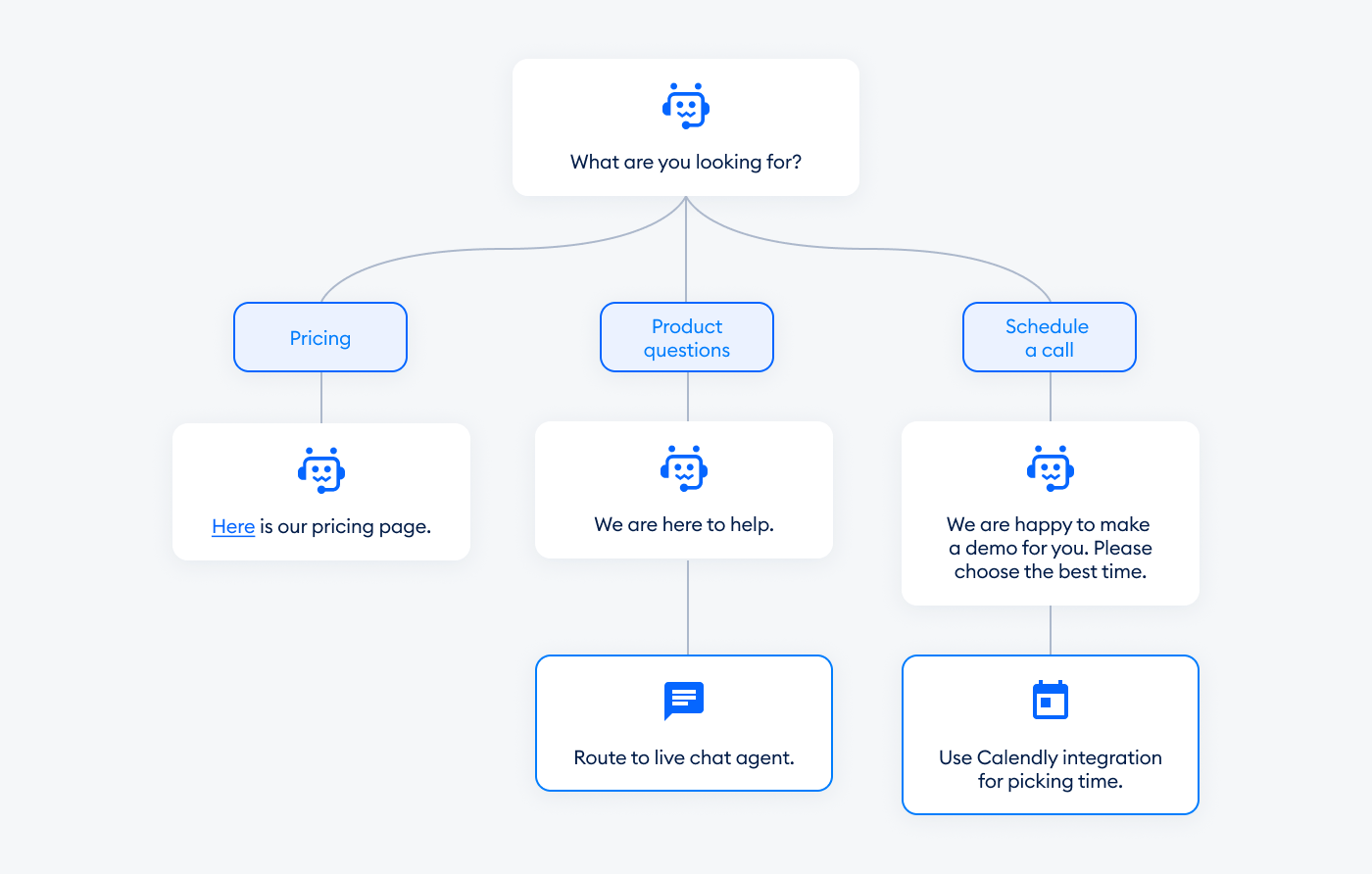

chat_img2

Start by clearly defining your chatbot's purpose. Ask yourself:

  • What problems will your chatbot solve?

  • Who are your target users?

  • What kind of interactions will your chatbot handle?

  • What platforms will your chatbot operate on?

Design the Conversation Flow

Create a detailed conversation flow that maps out potential user interactions. Consider:

  • Welcome messages and initial interaction

  • Main functionalities and user intents

  • Error handling and fallback responses

  • Conversation exit points

Technical Implementation

Choose Your Technology Stack

Select appropriate technologies based on your requirements:

For Rule-based Chatbots:

  • Programming languages: Python, Node.js, or Java

  • Frameworks: Microsoft Bot Framework, Botpress, or Rasa

  • Frontend: Web interfaces or messaging platforms

For AI-powered Chatbots:

  • NLP libraries: NLTK, spaCy, or Stanford NLP

  • Machine Learning frameworks: TensorFlow or PyTorch

  • Cloud services: DialogFlow, IBM Watson, or Azure Bot Service

Advanced Conversation Flow Design

Implement a state machine for complex conversation flows:

from enum import Enum
from typing import Dict, List, Optional

class State(Enum):
INIT = "INIT"
GREETING = "GREETING"
COLLECTING_INFO = "COLLECTING_INFO"
PROCESSING = "PROCESSING"
ERROR = "ERROR"
FAREWELL = "FAREWELL"

class ConversationManager:
def __init__(self):
self.state = State.INIT
self.context: Dict = {}
self.required_fields: List[str] = ["name", "email", "issue"]

def transition(self, user_input: str) -> tuple[State, str]:
if self.state == State.INIT:
self.state = State.GREETING
return self.state, "Welcome! Can I get your name?"

if self.state == State.GREETING:
self.context["name"] = user_input
self.state = State.COLLECTING_INFO
return self.state, f"Nice to meet you {user_input}! What's your email?"

if self.state == State.COLLECTING_INFO:
if "email" not in self.context:
self.context["email"] = user_input
return self.state, "What issue can I help you with today?"
elif "issue" not in self.context:
self.context["issue"] = user_input
self.state = State.PROCESSING
return self.state, self.process_issue()

return State.ERROR, "I'm sorry, something went wrong."

def process_issue(self) -> str:
# Process the collected information
return f"Thanks {self.context['name']}, I'll help you with: {self.context['issue']}"

Advanced Natural Language Understanding

1. Enhanced NLU Pipeline

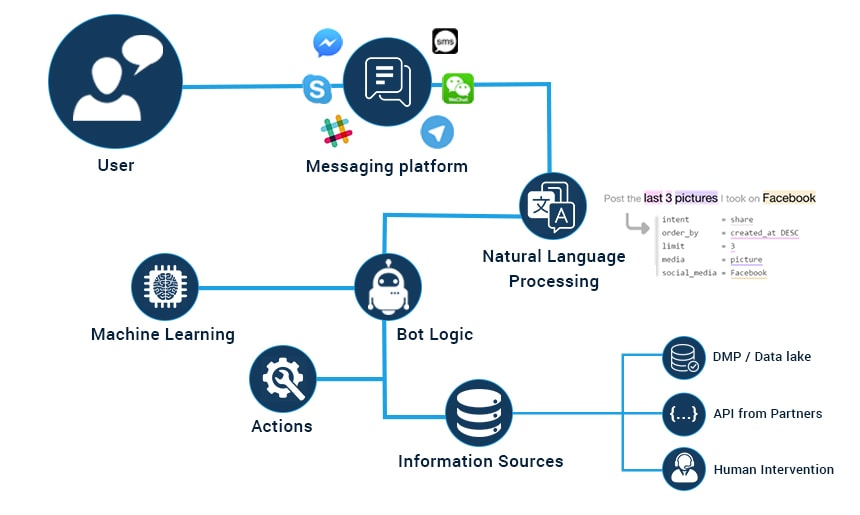

nlu1

import spacy
from typing import Dict, List, Tuple

class NLUPipeline:
def __init__(self):
self.nlp = spacy.load("en_core_web_sm")
self.entity_patterns = {
"email": r'\b[A-Za-z0-9._%+-]+@[A-Za-z0-9.-]+\.[A-Z|a-z]{2,}\b',
"phone": r'\b\d{3}[-.]?\d{3}[-.]?\d{4}\b',
"date": r'\b\d{1,2}/\d{1,2}/\d{4}\b'
}

def process(self, text: str) -> Dict:
doc = self.nlp(text)

# Extract entities
entities = self._extract_entities(doc)

# Extract syntactic features
syntax = self._analyze_syntax(doc)

# Sentiment analysis
sentiment = self._analyze_sentiment(doc)

return {
"entities": entities,
"syntax": syntax,
"sentiment": sentiment,
"tokens": [token.text for token in doc]
}

def _extract_entities(self, doc) -> List[Dict]:
entities = []
for ent in doc.ents:
entities.append({
"text": ent.text,
"label": ent.label_,
"start": ent.start_char,
"end": ent.end_char
})
return entities

def _analyze_syntax(self, doc) -> Dict:
return {
"noun_phrases": [chunk.text for chunk in doc.noun_chunks],
"verbs": [token.text for token in doc if token.pos_ == "VERB"]
}

def _analyze_sentiment(self, doc) -> float:
return doc.sentiment

2. Dialog Management

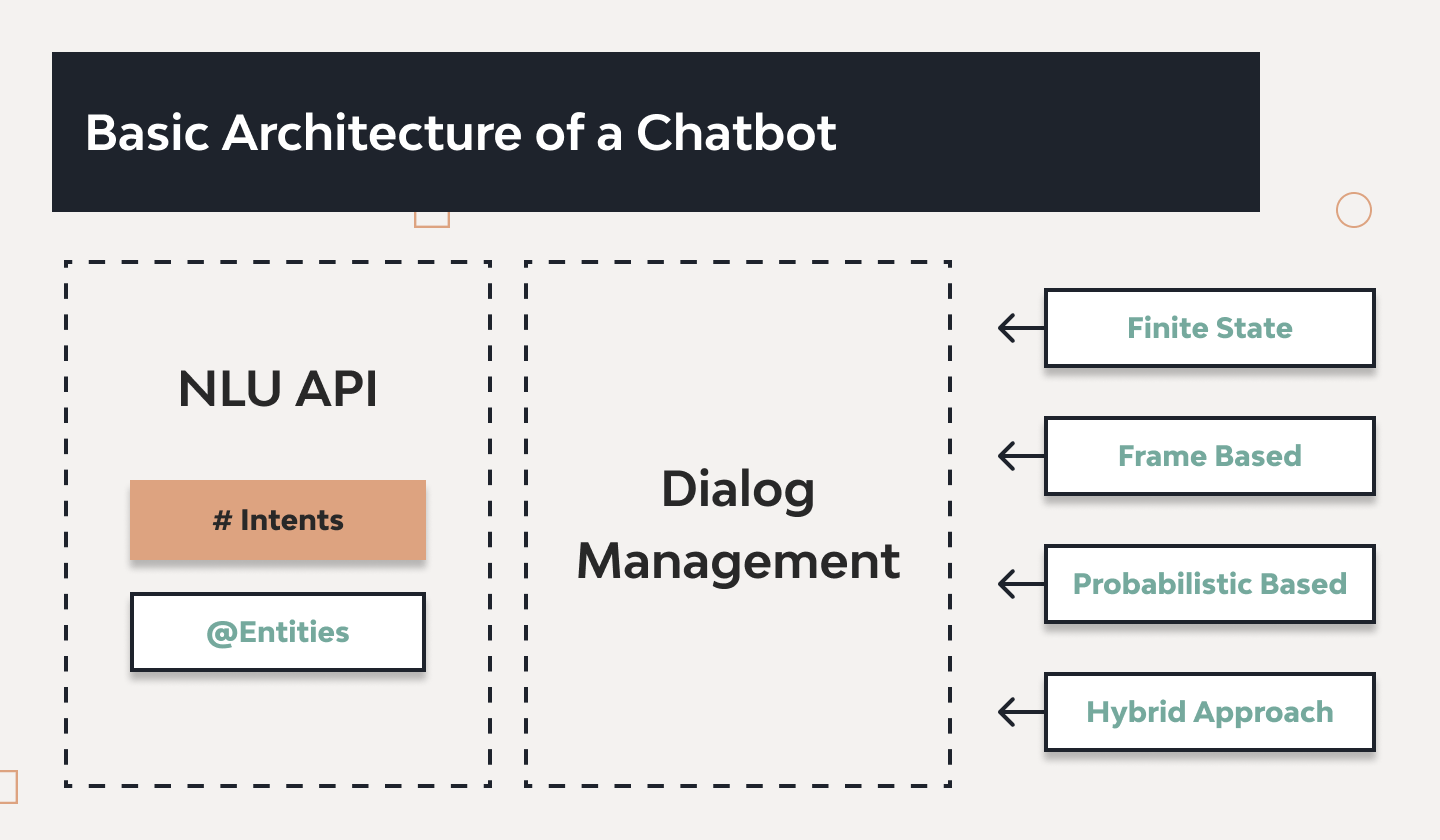

dialoag

Create a dialog manager to handle conversation flow:

class DialogManager:
def __init__(self):
self.context = {}
self.current_state = "INIT"

def get_response(self, user_intent, entities):
if self.current_state == "INIT":
return self.handle_initial_state(user_intent)
return self.generate_response(user_intent, entities)

Testing and Deployment

Testing Strategy

Implement comprehensive testing:

  1. Unit tests for individual components

  2. Integration tests for the entire system

  3. User acceptance testing with real users

  4. Performance testing under various loads

Example test case:

def test_intent_classification():
test_inputs = [
("Hello there", "greeting"),
("I need help", "help"),
("Goodbye", "farewell")
]

for input_text, expected_intent in test_inputs:
assert classify_intent(input_text) == expected_intent

Deployment Considerations

When deploying your chatbot:

  • Choose appropriate hosting solutions (cloud-based or on-premises)

  • Implement monitoring and logging

  • Set up analytics to track performance

  • Create a maintenance and update schedule

Best Practices and Tips

User Experience

  1. Design clear and concise responses

  2. Implement context awareness

  3. Handle errors gracefully

  4. Provide clear escape routes from confusion

  5. Maintain a consistent personality

Technical Considerations

  1. Implement rate limiting to prevent abuse

  2. Use caching for improved performance

  3. Implement secure data handling

  4. Regular backup and recovery procedures

  5. Monitor and log all interactions

Continuous Improvement

Gathering and Using Feedback

Implement feedback mechanisms:

  • Track successful vs. failed interactions

  • Analyze user satisfaction metrics

  • Collect and categorize user suggestions

  • Regular review of chat logs for improvements

Measuring Success

Monitor key metrics:

  • User engagement rates

  • Task completion rates

  • Average conversation length

  • User satisfaction scores

  • Response accuracy

Conclusion

Building an effective chatbot requires careful planning, robust implementation, and continuous improvement. By following this guide and staying focused on user needs, you can create a chatbot that provides real value to your users while maintaining scalability and performance.

Remember that chatbot development is an iterative process. Start simple, test thoroughly, and gradually add complexity based on user feedback and requirements. With proper planning and execution, your chatbot can become a valuable asset for your organization or project.

Expert team for Python Tech Developers
Our devs
Profile
Dhaval Gala
LinkedInGitHub
Co-Founder
React Native
Python
AWS
Profile
Kuldeep Mane
LinkedInGitHub
Software Engineer
Python
.NET
Software Developers
Profile
Amit Yadav
LinkedInGitHub
Software developer
React Native
Python
Angular
Schedule a call now
Start your offshore web & mobile app team with a free consultation from our solutions engineer.

We respect your privacy, and be assured that your data will not be shared
